300V SP PORTABLE CORD

Multiple Conductors Flexible EPR/CPE Submersible Pump Cable SUBMERSIBLE PORTABLE CORD & CONTROL CABLE, 300 VOLT

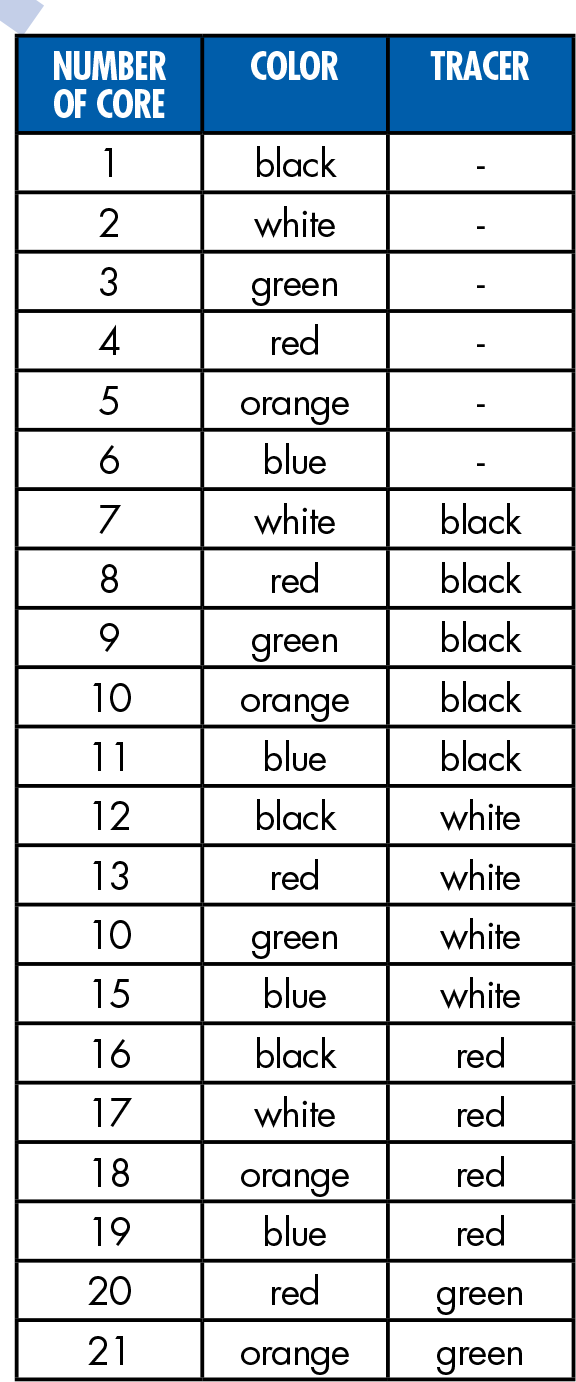

Conductors: Flexible stranded bare copper, optional tincoated copper, in accordance with ASTM B 174 and UL 62. Insulation: Ethylene-propylene rubber (EPR). Assembly: Insulated conductors cabled together with rubber or paper fillers as needed. Separator: Paper tape or polyester tape. Color Code: 2/C Black, White 3/C Black, White, Green 4/C Black, White, Red, Green 5/C Black, White, Red, Green, Orange Jacket: CPE or CP compound class 1.10 90°C of UL 62. Color of Jacket: Black, other colors available upon request.,Multicore Cables:

Flexible Submersible Pump Cable designed for use in submersible and industrial applications suitable for continuous submersion. This type SJOOW portable junior service cord is oil and water resistant, integral filled, easy to strip and made without fillers. Impact, Abrasion, Ozone, Sun, Weather, Heat, Oil, and Flame resistant.

• Excellent flexibility
• Oil, solvents, ozone, weather, sunlight and water resistant
• Temperature range: -40°C to +90°C
• Flame test meets VW-1, FT2 and MSHA
• Suitable for shallow water immersion.
